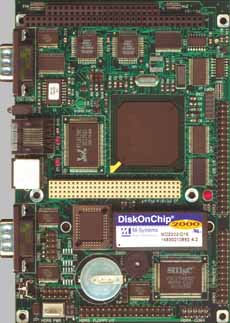

Building a driver development harddisk for the 53E52
If you want to write device drivers for the 53E52 you'll need a development environment that matches the Emac distribution on the board's DOC. Basically you'll need a compiler, the kernel source (maybe) and the kernel headers that match the kernel running from the DOC (on July 14, the DOC has kernel 2.4.20). You can set up this environment easily on a desktop workstation but if your writing device drivers, you'll need access to the real hardware. Since most device drivers are small, you can use the board itself to compile its own code. But that takes a little setup before that can happen. Here are the options for development environment.
1. Compile on desktop, copy binary to target, run on target (the execute, debug, edit, compile loop time is long)
2. Target NFS mounts desktop directory, desktop compiles, target executes (NFS can be pain to setup)
3. Boot target on development harddisk, compile and execute on target (simple, but compile times can be long)
The third option is most attractive because its simple. Remember you are only compiling device drivers which are small. If you want to compile the kernel on the 53E52, be prepared to wait for a long, long time.
Instructions
On a desktop, install Debian 3.0 on a 1.2G HD or greater, follow these instructions
Then run this sbc.install script
This sbc.install installs everything needed, compiler, kernel source and headers, kernel 2.4.20, and DOC module etc
Connect this disk to the 53E52, change BIOS to boot from HD (see BIOS setup below for HD booting), boot and your ready for development
helloworld_proc_module.c is in /root, grep it for gcc to see how to compile it
cd /root
grep gcc helloworld_proc_module.c > a
cat a
gcc -O2 -D__KERNEL__ -DMODULE -I/usr/src/linux/include -c helloworld_proc_module.c -o helloworld_proc_module.o
source a
insmod helloworld_proc_module.o
lsmod
Module Size Used by Tainted: P
helloworld_proc_module 765 0 (unused)
cat /proc/helloworld
helloworld Default
DOC patching 2.4.20 notes
As of 7/14/03, Emac was shipping kernel version 2.4.20 with DOC patch 5.1.4 applied. I tried to patch 2.4.20 with doc 5.1.4 but was unsuccessful. The DOC docs say 5.1.4 in qualified with 2.4.17, 2.4.18, and 2.4.19 but not 2.4.20. Somehow Emac has patched 2.4.20 with 5.1.4 but hasn't released that infomation.
I couldn't patch 2.4.20 with doc 5.1.4, using old 5.0.0
cd /usr/src
rm -rf linux
tar zxvf linux-2.4.20.tar.gz
ln -s linux-2.4.20 linux
tar zxvf doc-linux-5.0.0.tgz
cd doc-linux-5.0.0/driver
./patch_linux linux-2_4-patch driver-patch /usr/src/linux
cd /usr/src/linux
wget http://www.embeddedlinuxinterfacing.com/seminar/ouray03w/config2.4.20doc
cp config2.4.20doc .config
yes n | make oldconfig
make dep
make bzImage
cp arch/i386/boot/bzImage /tmp
make modules
cp drivers/block/doc/doc.o /tmp
Emac Inc - 53E52 (BIOS 7.6) with 16/16M Notes
BIOS setup
Serial access
Connect keyboard, reset board, press 'del' key while the board beeps
You need to use a PS/2 keyboard because you don't want to possibility of entering the BIOS from a noisy modem
Here's the fastest boot setup for development disk booting
Boot on the harddisk, then
insmod /usr/src/53e52/doc.o
mount /dev/fla1 /mnt
ls /mnt
Copy your working device drivers to /mnt.
Shutdown, remove development hardware and power up. The 53e52 should boot from flash with the Emac distribution.
Here's the fastest boot setup for DOC booting
+------------------------------------------------------------------------------+
| System Bios Setup - Basic CMOS Configuration |
| (C) 2000 General Software, Inc. All rights reserved |
+---------------------------+--------------------+-----------------------------+
| DRIVE ASSIGNMENT ORDER: | Date:>Mar 09, 2003 | Typematic Delay : 250 ms |
| Drive A: (None) | Time: 22 : 34 : 26 | Typematic Rate : 30 cps |
| Drive B: (None) | NumLock: Disabled | Seek at Boot : None |
| Drive C: (None) +--------------------+ Show "Hit Del" : Enabled |
| Drive D: (None) | BOOT ORDER: | Config Box : Disabled |
| Drive E: (None) | Boot 1st: Drive C: | F1 Error Wait : Disabled |
| Drive F: (None) | Boot 2nd: (None) | Parity Checking : (Unused) |
| Drive G: (None) | Boot 3rd: (None) | Memory Test Tick : Disabled |
| Drive H: (None) | Boot 4th: (None) | Test Above 1 MB : Enabled |
| Drive I: (None) | Boot 5th: (None) | Debug Breakpoints: Enabled |
| Drive J: (None) | Boot 6th: (None) | Splash Screen : (Unused) |
| Drive K: (None) +--------------------+-----------------+-----------+
| Boot Method: Boot Sector | IDE DRIVE GEOMETRY: Sect Hds Cyls | Memory |
+---------------------------+ Ide 0: 3 = AUTOCONFIG, LBA | Base: |
| FLOPPY DRIVE TYPES: | Ide 1: Not installed | 640KB |
| Floppy 0: Not installed | Ide 2: Not installed | Ext: |
| Floppy 1: Not installed | Ide 3: Not installed | 15MB |
+---------------------------+--------------------------------------+-----------+
| ^E/^X/<Tab> to select or +/- to modify |
| <Esc> to return to main menu |
+------------------------------------------------------------------------------+
Linux issues EMAC should address
Provide full instructions for development station setup, EMAC is working on this
Provide full instructions for kernel compiling complete with board .config file, EMAC is working on this
Provide full instructions for kernel installation and lilo or dlilo operation, EMAC is working on this
Document use of watchdog timer, EMAC is working on this
Hold down Ctrl-Shift during startup to enter BIOS debugger
BIOS Debugger help screen
REBOOT - cold boot the target
CONSOLE [CON|COMn] - set debug console
MASK x - set debug mask for EDOSROM
WCOMx byte [n] - write byte to COMx n times
MODE n - set video mode
D[b|w|d] [addr] - dump memory (bytes/words/dwords)
R[16|32] [reg value] - display registers
I[w|d] port - input from 8/16/32-bit I/O port
O[w|d] port val - output to 8/16/32-bit I/O port
U[16|32] [addr] - unassemble code
E addr byte [...] - enter bytes
V vector# - display interrupt vector table pointer
T - trace next instruction
+|- - inc/dec IP
G - go (resume execution)
BP addr - set breakpoint
BC bkpt# - clear breakpoint
BL - list breakpoints
SO x - route EDOSROM output to COMx
EA20|DA20 - enable/disable A20 line
ECACHE|DCACHE - enable/disable cache
TORAM - run BIOS from RAM
TOROM - run BIOS from ROM
WP [addr] - set/clear watchpoint
RC index - read CMOS RAM data
WC index byte ... - write CMOS RAM data
RFL phys:phys len - read nwords words from Flash
WFL phys:phys xxxx ... - write words to Flash
EFL phys:phys - erase Flash block
LFL phys:phys - lock Flash block
SFL phys:phys wdcnt value - set Flash words to value
UFL phys:phys wdcnt addr - update Flash from buffer
CSR index - read data from chipset
CSW index data - write data to chipset
SIOR index - read data from SIO chip
SIOW index data - write data to SIO chip
PCIR[BWD] idx [func dev bus] - read data from PCI device
PCIW[BWD] idx val [func dev bus]- write data to PCI device
PCID - dump PCI enumeration
RD|WD unit sec hd trk addr - read/write disk sector to/from buffer
BIOSDATA - display BIOS data area
?|HELP - show this help
